Database

The Database module lets you sell managed database services from CLIENTXCMS. It supports MySQL/MariaDB, PostgreSQL, and MongoDB. MySQL/MariaDB services can also be connected through ProxySQL.

Module

The Database module must be enabled in CLIENTXCMS before you can create a server or a product. Learn how to enable a module.

Supported Features

• Automatic database and primary user creation after an order
• Database and additional-user management from the customer area
• Limits for databases, users, connections, and storage
• Automatic suspension and reactivation
• Automatic expiration and termination
• Product upgrades with the new limits applied to the service
• Optional phpMyAdmin access for MySQL/MariaDB
• Optional ProxySQL user registration and routing for MySQL/MariaDB

Prepare the Database Server

Before adding the server to CLIENTXCMS:

1. Install and start the selected database engine.
2. Create a dedicated administration account for CLIENTXCMS. It must be allowed to create, update, and delete databases and users, and to grant the permissions selected by customers.
3. Allow remote connections from the CLIENTXCMS server only.
4. Open the database port in the firewall only for the CLIENTXCMS IP address.
5. Test the connection from the CLIENTXCMS host before saving the server.

Production security

Do not expose the administration port publicly. Use an IP allowlist, a private network, or a VPN, and store a dedicated password for CLIENTXCMS. Do not reuse the database root account when a restricted administration account can be used.

Engine Connection Details

Engine	Default port	Administration account requirements
MySQL/MariaDB	3306	Manage databases, users, grants, connection limits, and quotas supported by the server
PostgreSQL	5432	Create and remove databases and roles, change role limits, and grant database privileges
MongoDB	27017	Create and remove databases/users and manage their roles and permissions

The hostname must resolve from the CLIENTXCMS server. If a non-default port is configured on the database server, enter that port instead.

MongoDB PHP Extension

MongoDB support requires the PHP MongoDB extension on the server running CLIENTXCMS. On Debian or Ubuntu, install it with:

sudo apt update
sudo apt install php-mongodb

Restart the PHP service used by your installation and your web server if necessary. For example, replace 8.4 with your installed PHP version:

sudo systemctl restart php8.4-fpm
sudo systemctl restart nginx

Verify that the extension is enabled:

php -m | grep mongodb

The command must return mongodb. If CLIENTXCMS uses a different PHP version from the command-line version, install and enable the extension for that version as well.

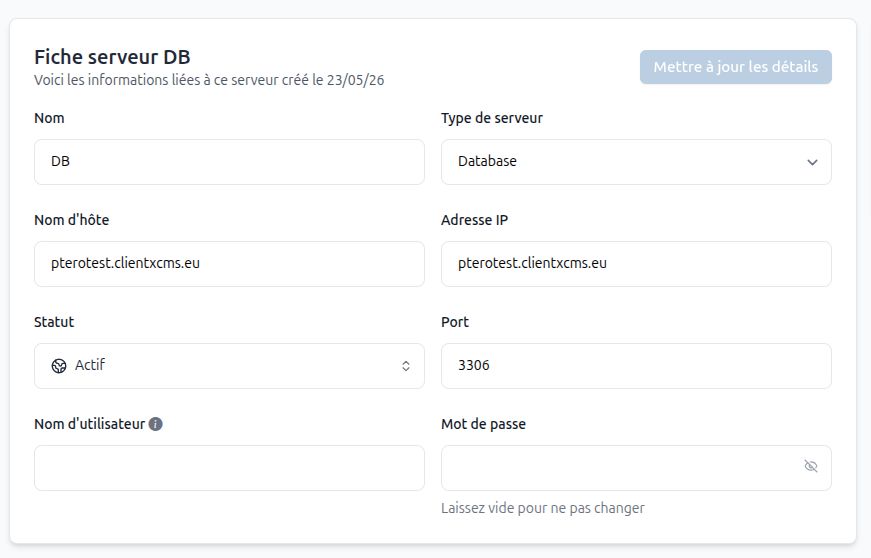

Create the CLIENTXCMS Server

Go to Administration Area > Settings > Provisioning > Servers > New, then select Database as the server type.

Complete the server form as follows:

Field	Configuration
Name	An internal name that clearly identifies the database node
Server type	Database
Hostname	Public or private hostname used by customers when connecting
IP address	Address used by CLIENTXCMS to reach the database server
Status	Active to allow provisioning on this server
Port	Port of the selected engine, such as 3306, 5432, or 27017
Username	Dedicated database administration account
Password	Password of the administration account

Save the server and test its connection. A failed test usually means that the host, port, credentials, remote-access rules, or firewall allowlist is incorrect.

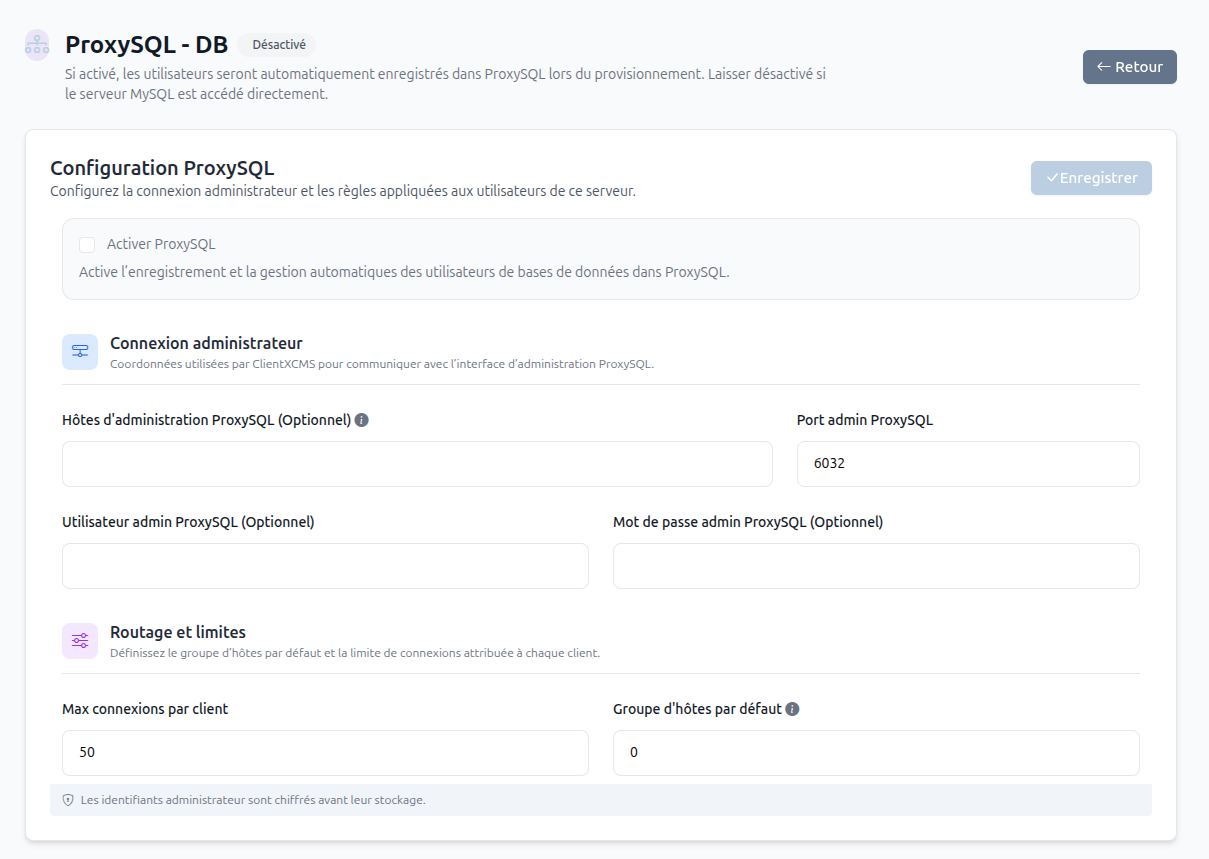

MySQL/MariaDB with ProxySQL

ProxySQL is optional and is available only for MySQL/MariaDB services. Leave it disabled when customers connect directly to the MySQL server.

When ProxySQL is enabled, CLIENTXCMS automatically registers and manages provisioned database users in ProxySQL. Configure:

Field	Configuration
ProxySQL administration host	Host of the ProxySQL administration interface; leave empty only when the module can use the database server host
ProxySQL administration port	Usually 6032
ProxySQL admin user	Account allowed to manage ProxySQL users and runtime configuration
ProxySQL admin password	Password of the ProxySQL administration account
Maximum connections per customer	Connection limit assigned to each provisioned customer user
Default hostgroup	ProxySQL hostgroup receiving the customer connections

The ProxySQL backend must already point to the MySQL/MariaDB server. Verify that the default hostgroup exists and that the address given to customers is the ProxySQL frontend address, not its administration interface.

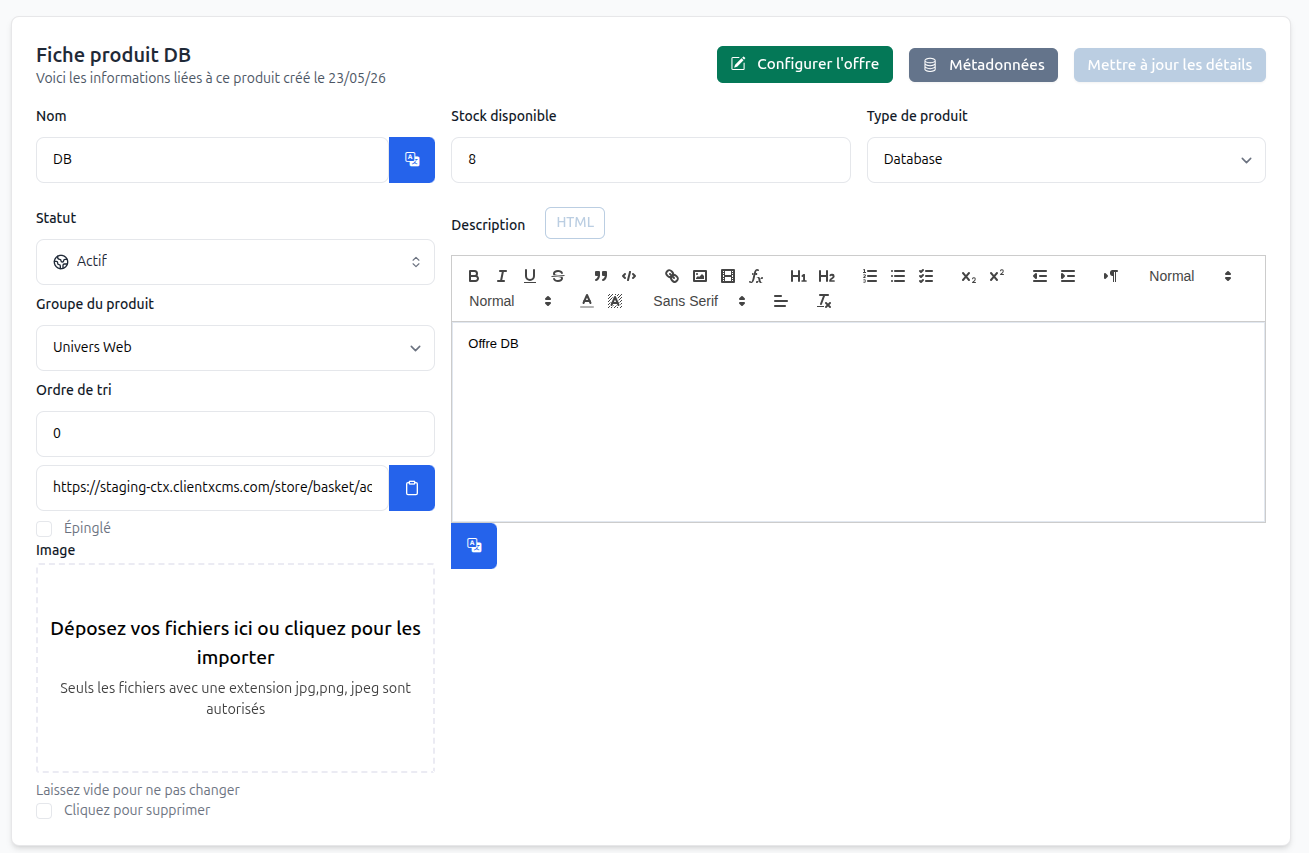

Create a Database Product

First, create a product and select Database as its type.

Configure its name, product group, price, stock, description, and visibility as for any other CLIENTXCMS product. Save it, then select Configure Offer.

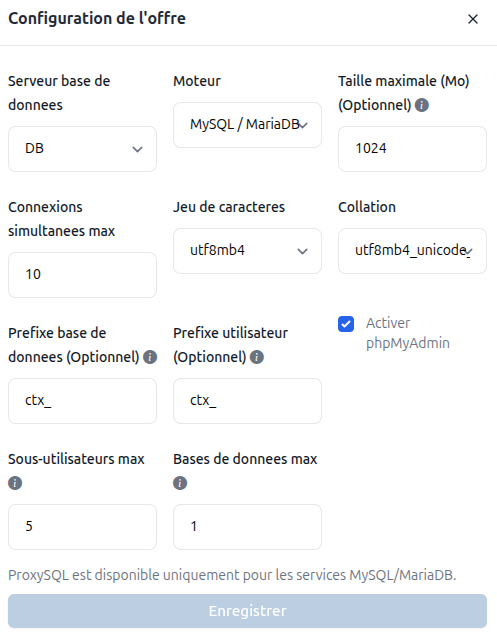

MySQL/MariaDB

Select MySQL/MariaDB to configure storage and connection limits, the character set, collation, resource prefixes, phpMyAdmin access, and the maximum numbers of databases and additional users. This is the only engine compatible with the optional ProxySQL configuration.

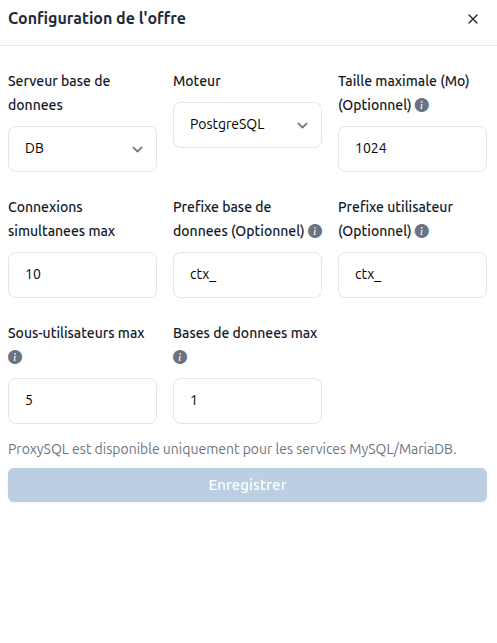

PostgreSQL

Select PostgreSQL to provision databases and roles on the chosen PostgreSQL server. Configure the generated database and user prefixes, along with the maximum numbers of databases and additional users.

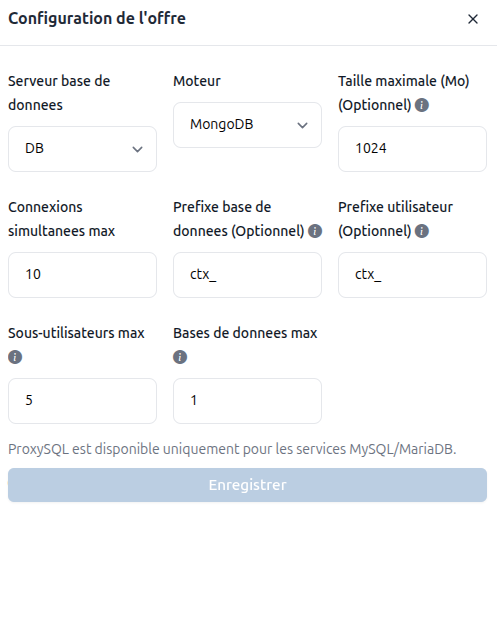

MongoDB

Select MongoDB to configure storage and connection limits, generated prefixes, and the maximum numbers of databases and additional users. The PHP MongoDB extension described above must be enabled before provisioning.

The available fields depend on the selected engine:

Field	Description
Database server	Node on which the service will be provisioned
Engine	MySQL/MariaDB, PostgreSQL, or MongoDB
Maximum size (MB)	Storage quota assigned to the service when supported
Maximum simultaneous connections	Maximum number of connections allowed for the service
Character set and collation	Default encoding and sorting rules for MySQL/MariaDB databases
Database prefix	Optional prefix added to generated database names
User prefix	Optional prefix added to generated usernames
Maximum additional users	Number of users the customer may create in addition to the primary user
Maximum databases	Number of databases the customer may create
Enable phpMyAdmin	Displays phpMyAdmin access for a MySQL/MariaDB service

Prefixes

Use short prefixes ending with an underscore, such as ctx_. They make provisioned resources easy to identify while leaving enough room for the generated unique name.

Choose limits that the database server can actually enforce and sustain. In particular, keep connection limits below the engine's global capacity and account for all products hosted on the same node.

Service Automation

Once the product is configured, the module follows the standard CLIENTXCMS service lifecycle:

Event	Automated action
Creation	Creates the primary database and user, generates credentials, applies the offer limits, and registers the user in ProxySQL when enabled
Suspension	Blocks use of the database service until it is reactivated
Reactivation	Restores access to the existing service and its resources
Upgrade	Applies the limits and options of the new product configuration
Expiration/termination	Removes the service resources according to the configured CLIENTXCMS expiration workflow

Termination and data loss

Database deletion is irreversible unless you maintain external backups. Configure payment reminders and termination delays carefully, and back up production databases outside the provisioned server.

Existing services cannot be imported

Database services cannot be imported manually into CLIENTXCMS. This restriction prevents CLIENTXCMS from taking control of databases, users, or credentials that were not created and secured by the module. Every service must therefore be provisioned automatically from a configured Database product.

Customer Management

Customers can view their connection information and manage the resources allowed by the product limits.

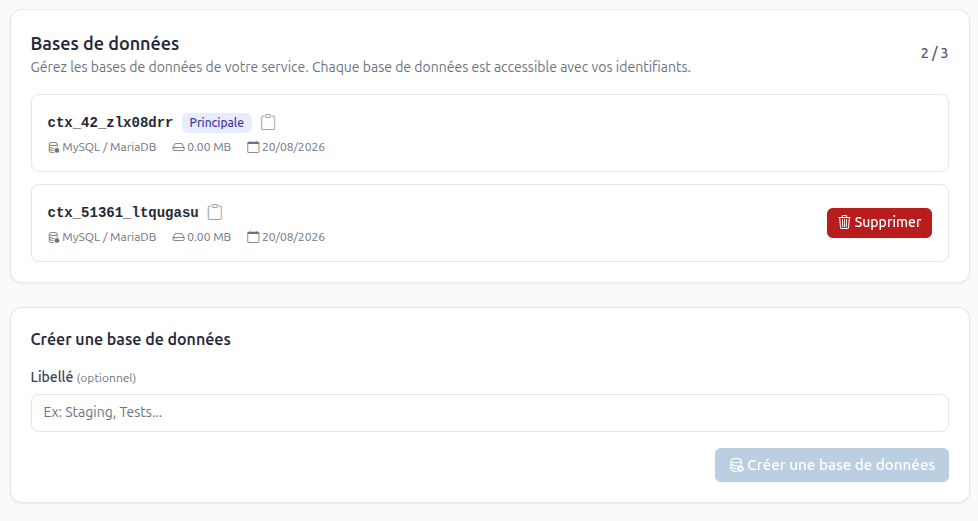

Databases

The customer can list databases, identify the primary database, create additional databases up to the configured limit, and delete eligible additional databases.

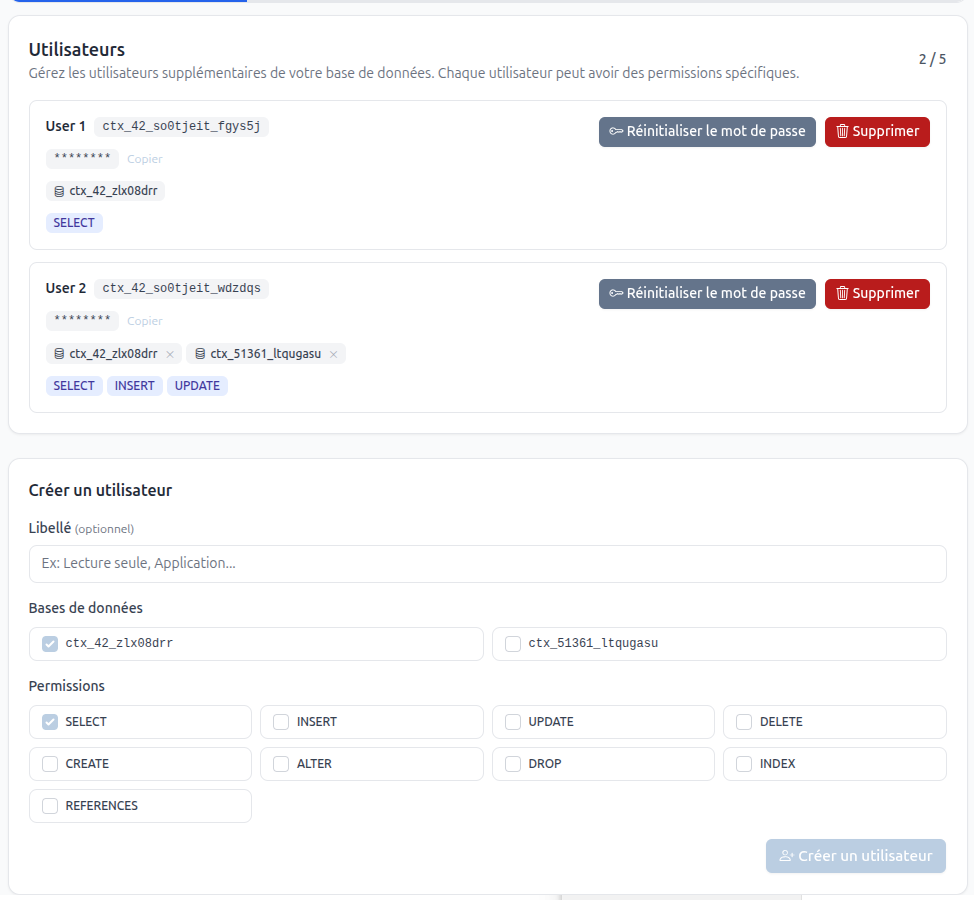

Users and Permissions

The customer can create additional users, associate them with one or more databases, select their permissions, reset their passwords, and delete them. Available permissions depend on the selected engine. Grant only the permissions required by the application; for example, a reporting user normally needs read access only.

Troubleshooting

• The server connection fails: verify DNS, IP address, port, firewall, remote listening address, and administrator credentials.
• Provisioning fails: confirm that the administration account can create databases/users and grant permissions.
• A customer cannot connect: check the service status, connection limit, allowed network, engine logs, and the hostname shown to the customer.
• ProxySQL access fails: verify port 6032 for administration, the frontend connection address, admin credentials, default hostgroup, and that the MySQL backend is online.
• An upgrade does not apply: confirm that the target engine supports the changed limit and review the CLIENTXCMS logs in Settings > Security > History.
